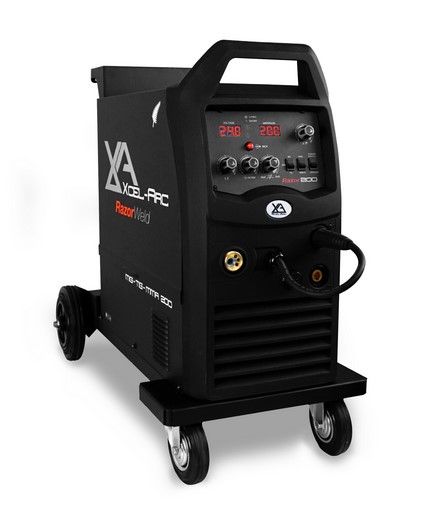

MIG200WRZ Workshop Style MIG/TIG/MMA Inverter Welder Package -RazorWeld

Description

The RAZORWELD™ 200WRZ is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 200WRZ is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZORWELD™ Work Shop series is designed for superior performance, offering the highest quality of welds from Xcel Arc’s range.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 240V Single Phase

SUPPLY PLUG: 15 AMP

RATED INPUT POWER (kVA): 9.4

Ieff (A): 15.0

RATED OUTPUT: 30A/15.5 - 200A/24.0V

NO LOAD VOLTAGE (V): 52

PROTECTION CLASS: IP21S

INSULATION CLASS: F

POWER FACTOR: 0.75

MINIMUM GENERATOR (kVA): 11.0

DINSE CONNECTOR: 35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminum, Copper

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE: 30-200A

MIG DUTY CYCLE @ 40°C: 15% @ 200A

MIG WIRE SIZE RANGE: 0.6-1.0mm

MIG WIRE SPOOL SIZE: 5kg / 15kg

MIG WELDING THICKNESS RANGE: 1-10mm

DRIVE ROLLER SIZE: 35/25

TIG SPECIFICATIONS

TIG FUNCTION TYPE: DC Lift Arc

TIG WELDING CURRENT RANGE: 10-200A

TIG DUTY CYCLE @ 40°C: 15% @ 200A

TIG WELDING THICKNESS RANGE: 1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE: 10-200A

STICK DUTY CYCLE @ 40°C: 15% @ 200A

STICK ELECTRODE RANGE: 2.5-4.0mm

STICK WELDING THICKNESS RANGE: 2-12mm
