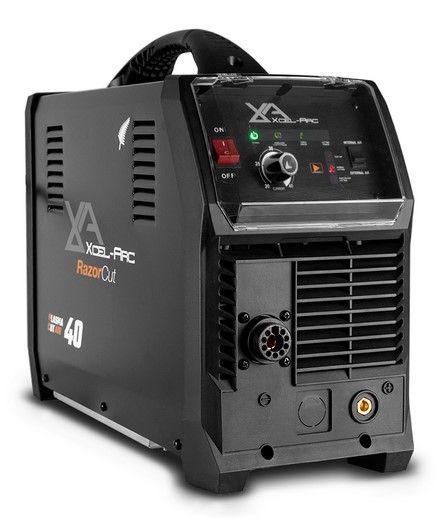

RazorCut-40PC Inverter Plasma Cutter with Onboard Compressor

Description

The RAZOR™ CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 40 AIR boasts some serious cutting power with 12mm clean-cut and 14mm severance on the built-in air compressor, and 16mm clean-cut and 18mm severance on an external compressor.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 240V Single Phase

SUPPLY PLUG: 15 Amps

RATED INPUT POWER (kVA): 7.2

Ieff (A): 15

RATED OUTPUT: 96V

NO LOAD VOLTAGE (V): 210

PROTECTION CLASS: IP21

INSULATION CLASS: H

MINIMUM GENERATOR (kVA): 10

DINSE CONNECTOR: 10/25

STANDARD: AS/NZ60974-1

SIZE & WEIGHT

DIMENSIONS (mm): 510x210x380mm

WEIGHT (kg): 18kg

MACHINE FEATURES

THERMAL OVERLOAD PROTECTION: Over Temperature Warning

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE: 20-40A

PLASMA CUT DUTY CYCLE @ 40°C: 25% @ 40A / 60% @ 26A / 100% @ 20A

MILD STEEL CUT THICKNESS: 10mm (INTERNAL) / 16mm (EXTERNAL)

MILD STEEL SEVERANCE THICKNESS: 12mm (INTERNAL) / 18mm (EXTERNAL)

ALUMINIUM CUT THICKNESS: 6mm (INTERNAL) / 8mm (EXTERNAL)

ALUMINIUM SEVERANCE THICKNESS: 8mm (INTERNAL) / 10mm (EXTERNAL)

STAINLESS STEEL CUT THICKNESS: 6mm (INTERNAL) / 10mm (EXTERNAL)

STAINLESS STEEL SEVERANCE THICKNESS: 8mm (INTERNAL) / 10mm (EXTERNAL)

AIR FLOW DRAW OFF (L/min): 120

AIR FLOW PRESSURE (Bar): 5.17 (75 psi)

PLASMA ARC START: Pilot Arc
