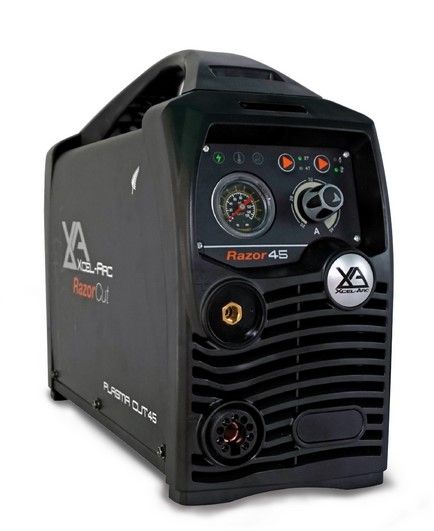

RazorCut-45 Inverter Plasma Cutter Package

Description

The RAZOR™ CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 45 boasts some serious cutting power with 16mm clean cut and 20mm severance.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 240V Single Phase

SUPPLY PLUG: 15 AMP

RATED INPUT POWER (kVA): 5.5

Ieff (A): 15

RATED OUTPUT: 98V

PROTECTION CLASS: IP21S

INSULATION CLASS: F

MINIMUM GENERATOR (kVA): 10.0

DINSE CONNECTOR: 10/25

STANDARD: AS/NZ60974-1

SIZE & WEIGHT

DIMENSIONS (mm): 410x165x330mm

WEIGHT (kg): 9.8kg

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE: 20-45A

PLASMA CUT DUTY CYCLE @ 40°C: 25% @ 45A

MILD STEEL CUT THICKNESS: 16mm

MILD STEEL SEVERANCE THICKNESS: 20mm

ALUMINIUM CUT THICKNESS: 8mm

ALUMINIUM SEVERANCE THICKNESS: 10mm

STAINLESS STEEL CUT THICKNESS: 8mm

STAINLESS STEEL SEVERANCE THICKNESS: 10mm

AIR FLOW DRAW OFF (L/min): 189

AIR FLOW PRESSURE (Bar): 5.17 (75 psi)

PLASMA ARC START: Pilot Arc
